Our Products

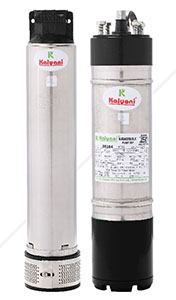

V4 Submersible Pump Oil Fill & Water Fill Pump
Suitable for l00mm(4") Bore Well Approx performance chart at 2880 RPM, 350 to 420 (T.P.) 160 to 230 V (S.P.). 50Hz AC Supply
| HP | 0.5 to 5HP |
| Pump stage | 5 to 60 stage |
| Head range | 6 to 243 mtr. |
| Discarge rang | 20 to 500 lpm. |

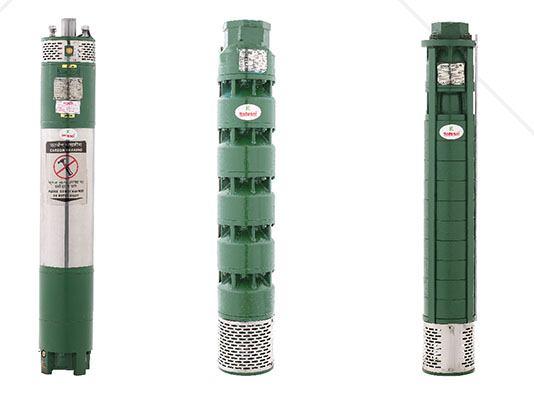

V6 Submersible Pump
9mtr,12mtr,15mtr,21mtr
Suitable for 150mm(6") Bore Well Approx performance chart at 2880 RPM , 350 to 420 V (T.P) & 160 to 230 V (S.P.) up to 7.5 HP, 50Hz AC supply
| Mix flow pump | Rediant flow pump | |
| HP | 3 to 30Hp | 3 to 30Hp |
| Pump Stage | 2 to 25 stage | 3 to 30 stage |
| Head Range | 18 mtr to 250 MTR | 20 to 450mtr |
| Discarge Rang | 160 to 1500 LPM | 50 to 880LPM |

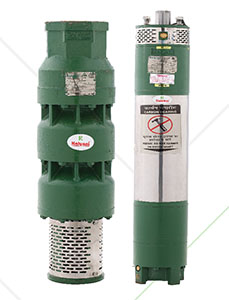

V7 & VJ Submersible Pump
Suitable for 175mm(7") Bore Well (Motor 6" & Pump 7") (Motor 6" & Pump 8") Approx performance chart at 2880 RPM, 350 to 420 V (T.P.),50Hz AC Supply
| HP | 5 to 30 HP |
| Pump stage | 2 to 8 stage |
| Head range | 30 to 121 MTR |
| Discarge range | 500 to 2450 LPM |

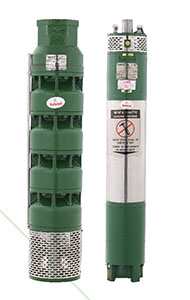

VS & V9 Submersible Pump
Suitable for 200mm (8") Bore Well Approx performance chart at 2880 RPM , 350 to 420 V (T.P.), 50Hz AC Supply
| Mix flow pump | Rediant flow pump | |
| HP | 7.5 to 85 HP | 7.5 to 60HP |
| Pump stage | 2 to 15 stage | 2 to 20 stage |
| Head range | 30 to 228 MTR | 40 to 418 MTR |
| Discarge range | 600 to 4000 LPM | 110 to 1152 LPM |

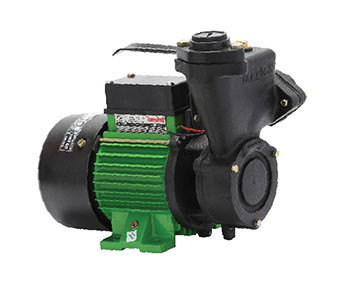

Mini Monoblock
Super suction monpobloc,slow speed monobloc 1440RPM & 2880RPM, 180-240 Volts single phase 50Hz. A. C supply
| Mix flow pump | Rediant flow pump | |
| HP | 7.5 to 85 HP | 7.5 to 60HP |
| Pump stage | 2 to 15 stage | 2 to 20 stage |
| Head range | 30 to 228 MTR | 40 to 418 MTR |
| Discarge range | 600 to 4000 LPM | 110 to 1152 LPM |

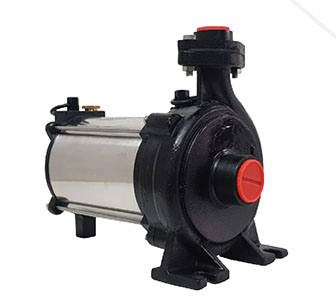

Mini HMPS
Horizantal Openwell Submersible Pumpsets Approximate Performance Chart at 2880 RPM, 200-240 Volts Single Phase,50Hz. A.C Supply
| HP | 0.5HP, 1HP, 1.5HP & 2HP |
| Voltage | 230V Sigalfesh Pumpsets |
| Delivary size | 25" 32" 40" & 50" |
| Head range | 6 to 44mtr |
| Discarge rang | 30 to 2901pm |
Sewage Pumps
Vertical open well submersible pump sets Approximate performance chart at 2880 RPM, 200-240 volts single phase, 50Hz,A.C supply
| HP | 1HP, 1.5HP & 2HP |
| Voltage | 230V sigalfesh pumpsets |
| Delivary size | 32" & 2" |
| Head range | 2.4 to 15.3mtr |
| Discarge rang | 60 to 600lpm |
